Gearwench

Professional Torque Products

Since early in its history, GEARWRENCH has been an innovator in the manufacture of torque wrenches. With design innovations from the micrometer "click" wrenches to fully-featured electronic torque wrenches, GEARWRENCH torque products are known for high quality that will meet or exceed your fastening requirements. The below guide will provide details on the different torque wrenches available from GEARWRENCH, making it easier to find the right one for your application.

Industrial applications for GEARWRENCH torque wrenches include:

AUTOMOTIVE

MANUFACTURING

CONSTRUCTION

ELECTRICAL

ASSEMBLY

SHOP ALL GEARWRENCH TORQUE WRENCHES

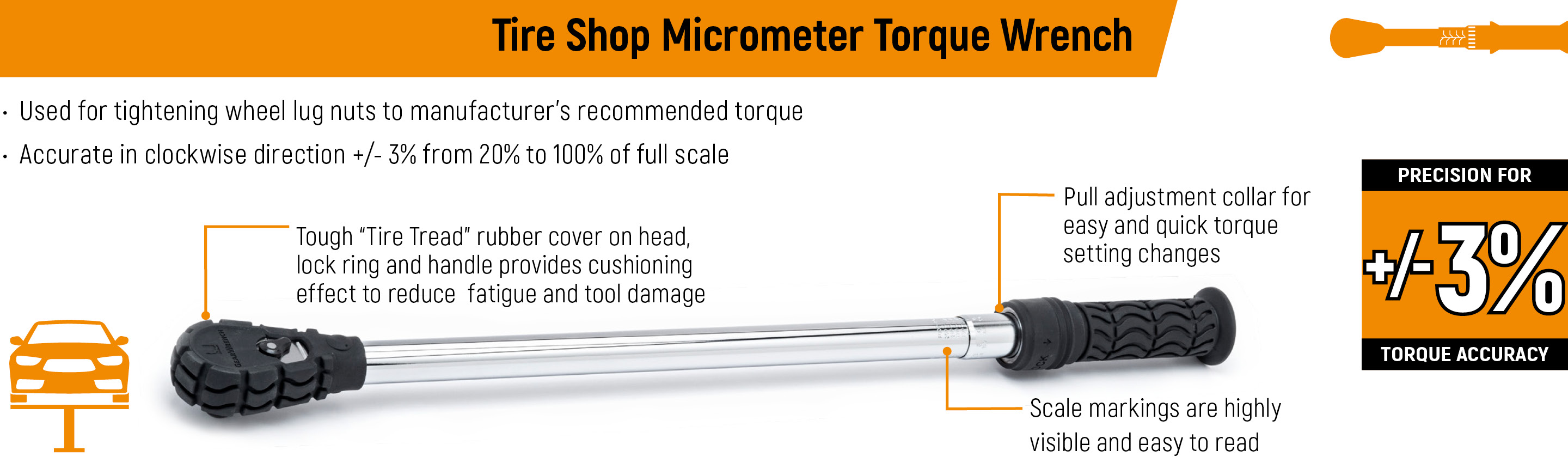

Diagram

Mfr. Model
No.		 Tenaquip Model No. Drive Size Head Style Primary Scale Range Primary Scale Increments Alt. Scale Range Alt. Scale Increments Tooth Count Head Thickness Head Width Overall Length Product Weight
85060M UAU780 1/4" Standard 30 - 200 in-lbs 1 in-lbs 4 - 23 Nm 0.1 Nm 22 0.5" 1.1" 10.5" 1.8 lbs
85061M UAU781 3/8" Standard 20 - 250 in-lbs 1 in-lbs 5 - 29 Nm 0.2 Nm 30 0.7" 1.4" 14.0" 2.0 lbs
85062M UAU782 3/8" Standard 10 - 100 ft-lbs 1 ft-lbs 20 - 142 Nm 1.0 Nm 30 0.7" 1.4" 18.0" 2.5 lbs
85063M UAU783 1/2" Standard 20 - 150 ft-lbs 1 ft-lbs 34 - 210 Nm 1.0 Nm 32 0.8" 1.75" 21.9" 3.1 lbs
85066M UAU785 1/2" Standard 30 - 250 ft-lbs 2 ft-lbs 54 - 353 Nm 3.0 Nm 32 0.8" 1.75" 24.3" 3.5 lbs
85086M UAU786 3/8" Flex 5 - 75 ft-lbs 0.5 ft-lbs 10 - 105 Nm 1.0 Nm 30 0.7" 1.4" 17.7" 2.4 lbs
85087M UAU787 1/2" Flex 30 - 250 ft-lbs 2 ft-lbs 54 - 353 Nm 3.0 Nm 36 0.9" 1.75" 25.3" 3.8 lbs

SHOP NOW

Diagram

Mfr. Model
No.		 Tenaquip Model No. Drive Size Head Style Primary Scale Range Primary Scale Increments Alt. Scale Range Alt. Scale Increments Tooth Count Head Thickness Head Width Overall Length Product Weight
85065M UAU784 3/4" Standard 100 - 600 ft-lbs 2.5 ft-lbs 153 - 831 Nm 4.0 Nm 36 1.1" 2.6" 42.4" 15.8 lbs
85067 AUW396 1" Standard 150 - 750 ft-lbs 5 ft-lbs 237 - 983 Nm 5.0 Nm 24 1.3" 2.8" 48.8" 14.1 lbs
85068 AUW397 1" Standard 200 - 1000 ft-lbs 5 ft-lbs 305 - 1322 Nm 5.0 Nm 24 1.3" 2.8" 73.0" 23.3 lbs

SHOP NOW

Diagram

Mfr. Model
No.		 Tenaquip Model No. Drive Size Head
Style		 Primary Scale Range Primary Scale Increments Alt. Scale Range Alt. Scale Increments Tooth Count Head Thickness Head Width Overall Length Product Weight
85088M UAU788 1/2" Standard - Protective Boot 30 - 250 ft-lbs 2 ft-lbs 54.2 - 352.6 Nm 2.7 Nm 32 1.0" 2.2" 24.9" 3.5 lbs

SHOP NOW

Diagram

Mfr. Model
No.		 Tenaquip Model No. Drive Size Primary Scale Range Primary Scale Increments Alt. Scale Range Alt. Scale Increments Head Thickness Head Width Overall Length Product Weight
2955N TDS979 1/4" 0 - 80 in-lbs 2.5 in-lbs 0-9 Nm 0.3 Nm 1.3" 0.8" 11.3" 0.8 lbs
2956N TDS941 3/8" 0 - 800 in-lbs 50 in-lbs 0-90 Nm 12 Nm 1.3" 0.8" 16.0" 1.0 lbs
2957N TDS949 1/2" 0 - 150 ft-lbs 5 ft-lbs 0-190 Nm 27 Nm 1.3" 1.1" 20.0" 2.5 lbs

SHOP NOW

Diagram

Mfr. Model
No.		 Tenaquip Model No. Drive Size Primary Scale Range Primary Scale Increments Alt. Scale Range Alt. Scale Increments Tooth Count Head Thickness Head Width Overall Length Product Weight
85194 AUW398 1/4" 2.0 - 20 ft-lbs 0.1 ft-lbs 2.7 - 27 Nm 0.1 Nm 120 0.4" 1.0" 15.5" 1.6 lbs
85195 AUW399 3/8" 10 - 100 ft-lbs 0.1 ft-lbs 13.5 - 135 Nm 0.1 Nm 120 0.6" 1.3" 15.9" 1.9 lbs
85196 AUW201 1/2" 25 - 250 ft-lbs 0.1 ft-lbs 34 - 340 Nm 0.1 Nm 120 0.7" 1.8" 24.3" 3.0 lbs

SHOP NOW

Diagram

Mfr. Model
No.		 Tenaquip Model No. Drive Size Head Style Primary Scale Range Primary Scale Increments Alt. Scale Range Alt. Scale Increments Tooth Count Head Thickness Head Width Overall Length Product Weight Torque Angle Feature
85076 AUW400 3/8" Standard 10 - 100 ft-lbs 0.1 ft-lbs 10 - 135 Nm 0.1 Nm 72 0.7" 1.3" 15.8" 1.9 lbs No
85077 AUW401 1/2" Standard 25 - 250 ft-lbs 0.1 ft-lbs 34 - 340 Nm 0.1 Nm 72 0.9" 1.6" 25.8" 2.9 lbs No
85078 AUW402 3/8" Flex 10 - 100 ft-lbs 0.1 ft-lbs 10 - 135 Nm 0.1 Nm 72 0.7" 1.3" 16.8" 2.1 lbs Yes
85079 AUW403 1/2" Flex 25 - 250 ft-lbs 0.1 ft-lbs 34 - 340 Nm 0.1 Nm 72 0.9" 1.6" 25.0" 3.1 lbs Yes
85082 AUW404 3/4" Standard 75 - 750 ft-lbs 0.1 ft-lbs 100 - 1000 Nm 0.1 Nm 24 2.2" 2.4" 49.1" 13.1 lbs No
85085 AUW405 1" Standard 100 - 1100 ft-lbs 0.1 ft-lbs 150 - 1500 Nm 0.1 Nm 24 2.3" 2.4" 49.1" 13.1 lbs No

SHOP NOW
